How to design custom replacement parts with 3D modeling

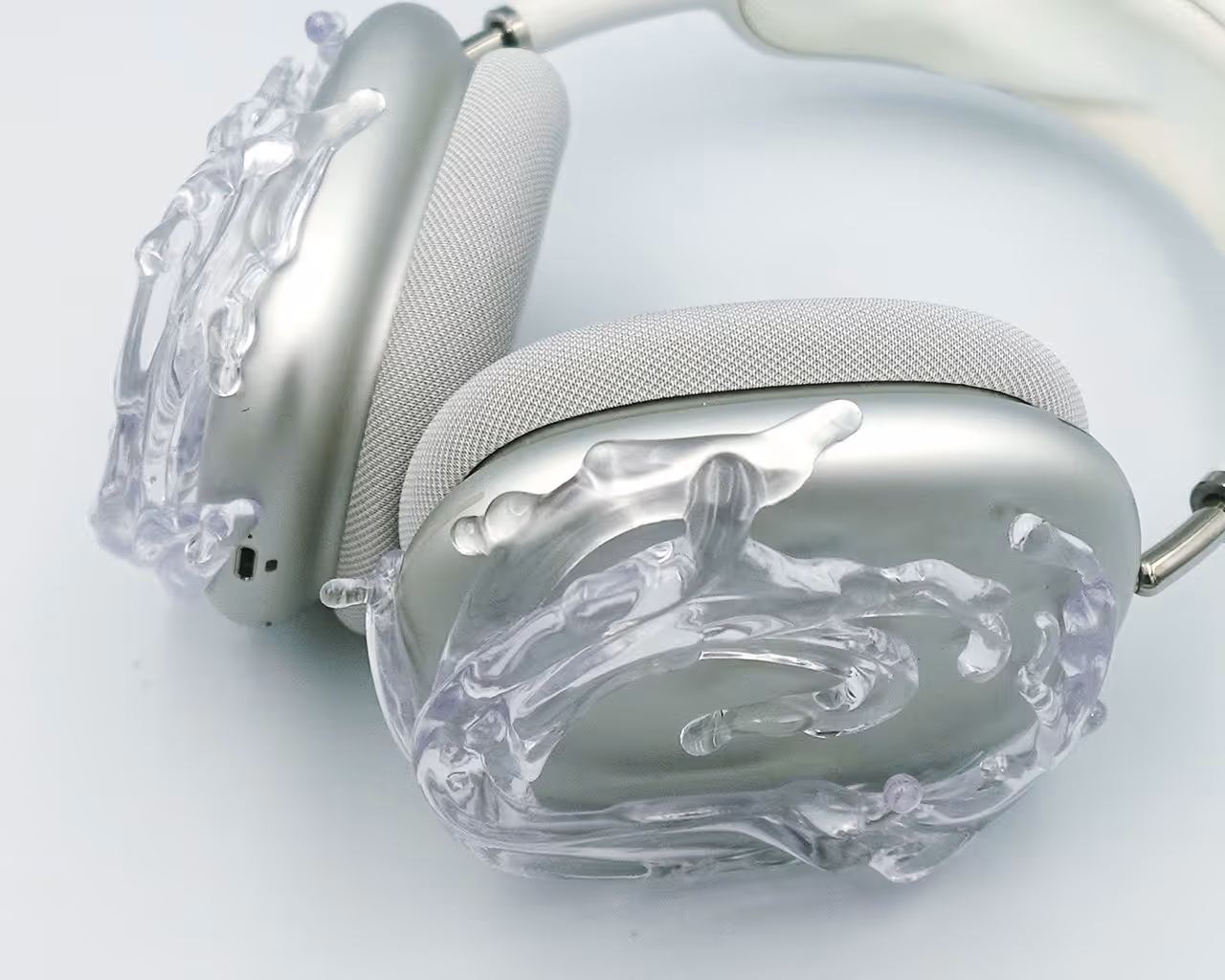

Unique 3D modeling design of a headphones accessory created with Womp

When something breaks and replacement parts are expensive, discontinued, or unavailable, 3D modeling offers a practical solution. Creating custom replacement parts has become increasingly accessible, allowing you to repair items that would otherwise be destined for the trash.

Why 3D design replacement parts yourself

Traditional replacement part sourcing often involves high costs, long wait times, and limited availability, especially for older or specialized items.

Cost savings that add up

Expensive original parts: Manufacturer replacement parts often cost a significant portion of the original item's price, making repairs economically questionable.

Multiple part orders: When you need several small parts, minimum order quantities and shipping costs can make traditional sourcing impractical.

Discontinued items: Older appliances, tools, and devices frequently have parts that are no longer manufactured or supported.

Design advantages

Perfect fit guaranteed: Custom parts can be designed to exact specifications, often improving on original designs.

Material optimization: Choose materials that better suit your specific use case or environment.

Design improvements: Fix original design flaws or add enhancements while creating the replacement.

Quick turnaround: Design and print parts in days rather than waiting weeks for shipping.

Essential measuring and documentation

Accurate measurements form the foundation of successful replacement part design.

Measurement techniques

Digital calipers: Invest in precise digital calipers for accurate measurements to 0.1mm precision.

Multiple measurements: Take measurements from different angles and positions to account for wear and manufacturing tolerances.

Reference documentation: Use the original broken part as a template, even if damaged, to understand the overall form and connection points.

Documentation best practices

Detailed photos: Capture the part from multiple angles, including connection points, mounting surfaces, and any special features.

Measurement sketches: Draw simple diagrams noting critical dimensions, tolerances, and functional requirements.

Contextual images: Show how the part fits within the larger assembly to understand spatial constraints and clearances.

Common replacement part categories

Different types of parts require specific design considerations and approaches.

Mechanical components

Knobs and handles: Often simple to recreate but require attention to ergonomics and attachment methods.

Brackets and mounts: Focus on structural strength and proper mounting hole alignment.

Gears and mechanical parts: Require precise tooth profiles and tight dimensional tolerances for proper function.

Household item repairs

Appliance components: Drawer slides, shelf supports, and door handles are common candidates for 3D replacement.

Tool parts: Handles, guards, and adjustment knobs can often be improved while being replaced.

Electronic enclosures: Cases and covers for electronics, often with specific mounting and ventilation requirements.

Specialty applications

Automotive trim: Interior and exterior trim pieces that break or wear out over time.

Furniture hardware: Connecting hardware, adjustment mechanisms, and decorative elements.

Garden and outdoor equipment: Weather-resistant parts for sprinklers, tools, and outdoor furniture.

Design process fundamentals

Creating functional replacement parts requires a systematic approach to ensure proper fit and function.

Starting with basic shapes

Begin with simple geometry: Most replacement parts can be built from basic shapes - cylinders, cubes, and spheres - that are then modified to match requirements.

Additive approach: Start with an oversized basic shape and remove material to create the final form, rather than trying to build up complex geometry.

Reference fitting: Use the broken original part or the space it occupied to guide your initial sizing and proportions.

Critical dimension identification

Functional surfaces: Identify which surfaces actually matter for the part's function versus those that are purely aesthetic.

Tolerance requirements: Determine where tight fits are necessary and where looser tolerances are acceptable.

Stress concentration points: Pay special attention to areas that will experience the most force or wear.

Material selection for functionality

The choice of printing material significantly affects the success of replacement parts.

Strength requirements

Professional SLA materials: Offer excellent detail and smooth surfaces, ideal for parts requiring precise fits or good appearance.

Load-bearing considerations: Understand the forces your part will experience and design accordingly, including wall thickness and internal structure.

Wear resistance: Consider how the part will wear over time and whether the replacement needs to be more durable than the original.

Environmental factors

Temperature exposure: Ensure your chosen material can handle the operating temperature range of the application.

Chemical compatibility: Consider exposure to cleaning chemicals, oils, or other substances that might affect the material.

UV exposure: For outdoor parts, factor in sun exposure and potential material degradation.

Sizing and tolerance considerations

Getting the fit right is crucial for replacement parts that need to interface with existing components.

Fit types and clearances

Press fits: Design parts slightly oversized for tight connections that rely on material compression.

Sliding fits: Add appropriate clearance (typically 0.1-0.2mm) for parts that need to move smoothly.

Threaded connections: Account for material shrinkage and printing limitations when creating threaded features.

Testing and iteration

Print test pieces: Create small test sections to verify critical dimensions before printing the full part.

Gradual sizing: If uncertain about fit, print slightly undersized and sand to final dimension rather than starting too large.

Functional prototypes: Test the part in its intended application before considering the design finalized.

Design optimization for 3D printing

Replacement parts need to be designed with printing constraints in mind while maintaining functionality.

Structural considerations

Wall thickness requirements: Maintain minimum 1.2mm thickness throughout the part for structural integrity.

Print orientation: Design parts to print in orientations that minimize support requirements and maximize strength in critical directions.

Overhangs and bridges: Avoid or minimize features that require extensive support material during printing.

Cost optimization

Material efficiency: Hollow large solid sections where structural requirements permit to reduce material costs.

Smart design choices: Eliminate unnecessary material while maintaining functionality and appearance.

Printing consolidation: Design multiple parts to print together when possible to reduce setup costs.

Testing and validation

Ensuring your replacement part works correctly requires systematic testing and validation.

Fit testing

Dry assembly: Test fit without permanent installation to verify clearances and alignment.

Stress testing: Apply expected loads gradually to ensure the part can handle operational stresses.

Wear testing: For parts subject to repeated motion, test through multiple cycles to identify potential failure points.

Functional validation

Full system testing: Install the part and test the complete device or assembly under normal operating conditions.

Performance comparison: Compare the function of your replacement to the original part's performance when it was new.

Long-term monitoring: Check the part periodically after installation to monitor for wear or degradation.

Legal and safety considerations

Creating replacement parts involves certain responsibilities and limitations that should be understood.

Safety responsibility

Critical components: Be extremely cautious when replacing parts that affect safety, such as structural components or pressure-bearing parts.

Professional consultation: For safety-critical applications, consider consulting with engineers or professionals familiar with the specific application.

Testing standards: Where applicable, ensure your replacement parts meet relevant safety or performance standards.

Intellectual property

Patent awareness: Be mindful that some parts may be covered by design patents, though functional replacement is generally acceptable.

Commercial use: Understand restrictions if you plan to sell replacement parts rather than just making them for personal use.

Troubleshooting common issues

Even well-designed replacement parts can encounter problems that require adjustment or refinement.

Fit problems

Too tight: Sand or file critical surfaces, or redesign with slightly more clearance.

Too loose: Add material with adhesive or padding, or redesign with tighter tolerances.

Binding issues: Check for print artifacts or support material remnants that interfere with proper fit.

Durability issues

Premature failure: Analyze the failure mode and strengthen the part through design changes or material selection.

Wear patterns: Identify unexpected wear and modify the design to reduce stress concentrations.

Environmental degradation: Adjust material choice or add protective coatings if environmental factors cause problems.

Conclusion

Creating custom replacement parts through 3D design empowers you to repair and maintain items that would otherwise be discarded. With careful measurement, thoughtful design, and appropriate material selection, you can create parts that often exceed the quality and durability of the originals.

The key to success lies in understanding both the functional requirements of the part and the capabilities of 3D printing technology. Start with simpler replacement parts to build experience, then gradually tackle more complex components as your skills develop.

This approach not only saves money but also contributes to a more sustainable lifestyle by extending the useful life of products and reducing waste. As 3D printing technology continues to advance, the possibilities for custom replacement parts will only continue to expand.
